View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000837 | T99X171.00 SKB Eagle | SW Issue | public | 2020-05-14 18:13 | 2020-10-21 10:59 |
| Reporter | (ALTech) SY Yoon | Assigned To | (SW) Kerwin Chen | Due Date | 2020-05-20 19:08 |
| Priority | normal | Severity | s2-severe | Reproducibility | have not tried |
| Status | closed | Resolution | fixed | ||
| Summary | 0000837: New RCU - Add RCU info | ||||
| Description | Could you add RCU info for Low Cost RCU. Please refer "RCU Info" tab in document that I attached. I marked yellow color. This is for Android 9 first. And we will have BMT for new RCU next month. | ||||
| Tags | No tags attached. | ||||
| Attach Tags | |||||
|
|
|
|
|

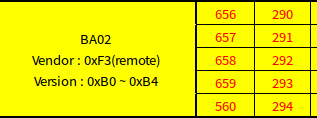

Hi Mr. Yoon, Could you double check if the key code in RemoteSolution's BA02 is correct or not ? I think it should be '660' instead of '560'. Thanks ! |
|
|
Hi Mr. Yoon, I put patch for new RCU info key mapping. Please forward to TVS and verify the result. I will commit to BitBucket after TVS finish tests. Thanks ! 0001-update-RCU-info-key-for-BA02-and-BT11-1-2.patch (4,375 bytes)
From 1b58814eb473d741150b0579906617e487891a01 Mon Sep 17 00:00:00 2001
From: kerwin <kerwin.chen@foxconn.com>
Date: Fri, 15 May 2020 15:13:20 +0800
Subject: [PATCH] update RCU info key for BA02 and BT11 [1/2]
---
.../boot/dts/amlogic/g12a_s905x2_BFX-AT100_3g.dts | 68 +++++++++++++++++++++-
drivers/amlogic/input/remote/rc_common.h | 3 +-
2 files changed, 68 insertions(+), 3 deletions(-)
diff --git a/arch/arm/boot/dts/amlogic/g12a_s905x2_BFX-AT100_3g.dts b/arch/arm/boot/dts/amlogic/g12a_s905x2_BFX-AT100_3g.dts
index 93911fb..f0ca103 100644
--- a/arch/arm/boot/dts/amlogic/g12a_s905x2_BFX-AT100_3g.dts
+++ b/arch/arm/boot/dts/amlogic/g12a_s905x2_BFX-AT100_3g.dts
@@ -1477,7 +1477,7 @@
map_0 { /* for Eagle Project, BA01 */
customcode = <0x7f80>; /* Mode 1 */
release_delay = <80>;
- size = <214>; /*default is 60*/
+ size = <234>; /*default is 60*/
keymap = <REMOTE_KEY(0x01,KEY_POWER) /*NO.1 and NO.3, power*/
REMOTE_KEY(0x47,127) /*NO.4, menu*/
REMOTE_KEY(0x56,264) /*NO.5, favorite channel, scan code = 264 */
@@ -1653,6 +1653,22 @@
REMOTE_KEY(0x83F3,616)
REMOTE_KEY(0x84F3,617)
+// Vendor : BT11
+// Vendor : 0xF3(remote), Version : 0xA0 ~ 0xA4, Total : 5
+ REMOTE_KEY(0xA0F3,694)
+ REMOTE_KEY(0xA1F3,695)
+ REMOTE_KEY(0xA2F3,696)
+ REMOTE_KEY(0xA3F3,697)
+ REMOTE_KEY(0xA4F3,698)
+
+// Vendor : BA02
+// Vendor : 0xF3(remote), Version : 0xB0 ~ 0xB4, Total : 5
+ REMOTE_KEY(0xB0F3,656)
+ REMOTE_KEY(0xB1F3,657)
+ REMOTE_KEY(0xB2F3,658)
+ REMOTE_KEY(0xB3F3,659)
+ REMOTE_KEY(0xB4F3,660)
+
// Vendor : BT02
// Vendor : 0xF4(movon), Version : 0x0 ~ 0xA, Total : 11
REMOTE_KEY(0x00F4,576)
@@ -1731,6 +1747,22 @@
REMOTE_KEY(0x83F4,648)
REMOTE_KEY(0x84F4,649)
+// Vendor : BT11
+// Vendor : 0xF4(movon), Version : 0xA0 ~ 0xA4, Total : 5
+ REMOTE_KEY(0xA0F4,710)
+ REMOTE_KEY(0xA1F4,711)
+ REMOTE_KEY(0xA2F4,712)
+ REMOTE_KEY(0xA3F4,713)
+ REMOTE_KEY(0xA4F4,714)
+
+// Vendor : BA02
+// Vendor : 0xF4(movon), Version : 0xB0 ~ 0xB4, Total : 5
+ REMOTE_KEY(0xB0F4,678)
+ REMOTE_KEY(0xB1F4,679)
+ REMOTE_KEY(0xB2F4,680)
+ REMOTE_KEY(0xB3F4,681)
+ REMOTE_KEY(0xB4F4,682)
+
// Vendor : BT07
// Vendor : 0xF5(UEI), Version : 0x40 ~ 0x4A, Total : 11
REMOTE_KEY(0x40F5,720)
@@ -1772,7 +1804,7 @@
map_1 { /* for Eagle Project, BA01 */
customcode = <0xa0f5>; /* Mode 2 */
release_delay = <80>;
- size = <214>;
+ size = <234>;
keymap = <REMOTE_KEY(0x01,KEY_POWER) /*NO.1 and NO.3, power*/
REMOTE_KEY(0x47,127) /*NO.4, menu*/
REMOTE_KEY(0x56,264) /*NO.5, favorite channel, scan code = 264 */
@@ -1947,6 +1979,22 @@
REMOTE_KEY(0x83F3,616)
REMOTE_KEY(0x84F3,617)
+// Vendor : BT11
+// Vendor : 0xF3(remote), Version : 0xA0 ~ 0xA4, Total : 5
+ REMOTE_KEY(0xA0F3,694)
+ REMOTE_KEY(0xA1F3,695)
+ REMOTE_KEY(0xA2F3,696)
+ REMOTE_KEY(0xA3F3,697)
+ REMOTE_KEY(0xA4F3,698)
+
+// Vendor : BA02
+// Vendor : 0xF3(remote), Version : 0xB0 ~ 0xB4, Total : 5
+ REMOTE_KEY(0xB0F3,656)
+ REMOTE_KEY(0xB1F3,657)
+ REMOTE_KEY(0xB2F3,658)
+ REMOTE_KEY(0xB3F3,659)
+ REMOTE_KEY(0xB4F3,660)
+
// Vendor : BT02
// Vendor : 0xF4(movon), Version : 0x0 ~ 0xA, Total : 11
REMOTE_KEY(0x00F4,576)
@@ -2025,6 +2073,22 @@
REMOTE_KEY(0x83F4,648)
REMOTE_KEY(0x84F4,649)
+// Vendor : BT11
+// Vendor : 0xF4(movon), Version : 0xA0 ~ 0xA4, Total : 5
+ REMOTE_KEY(0xA0F4,710)
+ REMOTE_KEY(0xA1F4,711)
+ REMOTE_KEY(0xA2F4,712)
+ REMOTE_KEY(0xA3F4,713)
+ REMOTE_KEY(0xA4F4,714)
+
+// Vendor : BA02
+// Vendor : 0xF4(movon), Version : 0xB0 ~ 0xB4, Total : 5
+ REMOTE_KEY(0xB0F4,678)
+ REMOTE_KEY(0xB1F4,679)
+ REMOTE_KEY(0xB2F4,680)
+ REMOTE_KEY(0xB3F4,681)
+ REMOTE_KEY(0xB4F4,682)
+
// Vendor : BT07
// Vendor : 0xF5(UEI), Version : 0x40 ~ 0x4A, Total : 11
REMOTE_KEY(0x40F5,720)
diff --git a/drivers/amlogic/input/remote/rc_common.h b/drivers/amlogic/input/remote/rc_common.h
index 762a972..9ec2c93 100644
--- a/drivers/amlogic/input/remote/rc_common.h
+++ b/drivers/amlogic/input/remote/rc_common.h
@@ -10,7 +10,8 @@
#include <linux/types.h>
-#define MAX_KEYMAP_SIZE 256
+//#define MAX_KEYMAP_SIZE 256 //VaS Kerwin modified for new low cost RTK RCU
+#define MAX_KEYMAP_SIZE 384
#define CUSTOM_NAME_LEN 64
/*to ensure kernel and user spase use the same header file*/
--
2.7.4
0001-update-RCU-info-key-for-BA02-and-BT11-2-2.patch (2,915 bytes)
From 52477e13fbd176489b25547556652b17952cef2b Mon Sep 17 00:00:00 2001 From: kerwin <kerwin.chen@foxconn.com> Date: Fri, 15 May 2020 15:14:03 +0800 Subject: [PATCH] update RCU info key for BA02 and BT11 [2/2] --- .../products/BFX-AT100/Vendor_0001_Product_0001.kl | 52 +++++++++++++++++----- 1 file changed, 42 insertions(+), 10 deletions(-) diff --git a/common/products/BFX-AT100/Vendor_0001_Product_0001.kl b/common/products/BFX-AT100/Vendor_0001_Product_0001.kl index 0fe383d..77e3336 100644 --- a/common/products/BFX-AT100/Vendor_0001_Product_0001.kl +++ b/common/products/BFX-AT100/Vendor_0001_Product_0001.kl @@ -342,11 +342,11 @@ key 690 SKB_FUNC_17 # 0x2b2 key 691 SKB_FUNC_17 # 0x2b3 key 692 SKB_FUNC_17 # 0x2b4 key 693 SKB_FUNC_17 # 0x2b5 -key 694 SKB_FUNC_17 # 0x2b6 -key 695 SKB_FUNC_17 # 0x2b7 -key 696 SKB_FUNC_17 # 0x2b8 -key 697 SKB_FUNC_17 # 0x2b9 -key 698 SKB_FUNC_17 # 0x2ba +#key 694 SKB_FUNC_17 # 0x2b6 +#key 695 SKB_FUNC_17 # 0x2b7 +#key 696 SKB_FUNC_17 # 0x2b8 +#key 697 SKB_FUNC_17 # 0x2b9 +#key 698 SKB_FUNC_17 # 0x2ba ## BT08 ## Vendor : 0xF3(remote), Version : 0x50 ~ 0x54 @@ -380,6 +380,22 @@ key 615 SKB_FUNC_17 # 0x267 key 616 SKB_FUNC_17 # 0x268 key 617 SKB_FUNC_17 # 0x269 +## BT11 +## Vendor : 0xF3(remote), Version : 0xA0 ~ 0xA4 +key 694 SKB_FUNC_17 # 0x2B6 +key 695 SKB_FUNC_17 # 0x2B7 +key 696 SKB_FUNC_17 # 0x2B8 +key 697 SKB_FUNC_17 # 0x2B9 +key 698 SKB_FUNC_17 # 0x2BA + +## BA02 +## Vendor : 0xF3(remote), Version : 0xB0 ~ 0xB4 +key 656 SKB_FUNC_17 # 0x290 +key 657 SKB_FUNC_17 # 0x291 +key 658 SKB_FUNC_17 # 0x292 +key 659 SKB_FUNC_17 # 0x293 +key 660 SKB_FUNC_17 # 0x294 + ## BT02 ## Vendor : 0xF4(movon), Version : 0x0 ~ 0xA key 576 SKB_FUNC_17 # 0x240 @@ -430,11 +446,11 @@ key 706 SKB_FUNC_17 # 0x2c2 key 707 SKB_FUNC_17 # 0x2c3 key 708 SKB_FUNC_17 # 0x2c4 key 709 SKB_FUNC_17 # 0x2c5 -key 710 SKB_FUNC_17 # 0x2c6 -key 711 SKB_FUNC_17 # 0x2c7 -key 712 SKB_FUNC_17 # 0x2c8 -key 713 SKB_FUNC_17 # 0x2c9 -key 714 SKB_FUNC_17 # 0x2ca +#key 710 SKB_FUNC_17 # 0x2c6 +#key 711 SKB_FUNC_17 # 0x2c7 +#key 712 SKB_FUNC_17 # 0x2c8 +#key 713 SKB_FUNC_17 # 0x2c9 +#key 714 SKB_FUNC_17 # 0x2ca ## BT08 ## Vendor : 0xF4(movon), Version : 0x50 ~ 0x54 @@ -468,6 +484,22 @@ key 647 SKB_FUNC_17 # 0x287 key 648 SKB_FUNC_17 # 0x288 key 649 SKB_FUNC_17 # 0x289 +## BT11 +## Vendor : 0xF4(movon), Version : 0xA0 ~ 0xA4 +key 710 SKB_FUNC_17 # 0x2C6 +key 711 SKB_FUNC_17 # 0x2C7 +key 712 SKB_FUNC_17 # 0x2C8 +key 713 SKB_FUNC_17 # 0x2C9 +key 714 SKB_FUNC_17 # 0x2CA + +## BA02 +## Vendor : 0xF4(movon), Version : 0xB0 ~ 0xB4 +key 678 SKB_FUNC_17 # 0x2A6 +key 679 SKB_FUNC_17 # 0x2A7 +key 680 SKB_FUNC_17 # 0x2A8 +key 681 SKB_FUNC_17 # 0x2A9 +key 682 SKB_FUNC_17 # 0x2AA + ## BT07 ## Vendor : 0xF5(UEI), Version : 0x40 ~ 0x4A key 720 SKB_FUNC_17 # 0x2d0 -- 2.7.4 |
|
|
hi kerwin it is verified by TVstrom. if it have some problem, we will reopen it. Thanks |
|
|
it is closed |
